How Image to Markdown works: local OCR, then document reconstruction.

The Image to Markdown converter is not an upload form around a remote OCR API. Adding an image starts a local pipeline: one Tesseract worker recognises text and coordinates, then a separate layout pass rebuilds document structure and keeps it adjustable in the interface.

The page is a four-stage local pipeline

1. Input: paste, drop, or select up to twelve PNG, JPG, WebP, or GIF images. Each image joins one queue and conversion starts automatically.
2. Recognition: the page dynamically loads Tesseract.js, creates one worker for the selected language, and asks it for text plus layout blocks.
3. Reconstruction: word confidence and bounding boxes become a small page model; relative size, indentation, gaps, and repeated columns become Markdown structure.
4. Review and export: the page renders a preview, reports confidence, lets detection options rebuild the result, and copies or downloads individual Markdown files or a ZIP.

Stage 1: Tesseract OCR runs in the tab

The engine is tesseract.js: a WebAssembly build of Tesseract. The page runs it through a browser worker, away from the main UI thread, so progress can update while a screenshot or scan is being read.

It is not loaded with the page. The WASM core and the language model are relatively heavy, so neither is part of the initial page bundle. The import happens only after the first image joins the queue:

const { createWorker } = await import('tesseract.js');
const worker = await createWorker('eng', 1, { logger });

The browser can cache those assets after the first fetch, which is why later conversions usually start faster. The converter is also built around a queue rather than a button: loading the engine costs far more than reading a page does, so twelve screenshots share one worker and pay that price once between them. Images dropped while a run is going join the same queue rather than starting a second engine.

Stage 2: text, word boxes, and confidence

The recognition call requests plain text and layout blocks. The Markdown pass uses the richer tree — blocks, paragraphs, lines, and words with bounding boxes and confidence scores. Flattened to the page model used by the converter, one line looks like this:

{
  text: "Follow-up actions",
  confidence: 94,
  bbox: { x0: 372, y0: 557, x1: 861, y1: 595 },
  words: [ { text: "Follow-up", bbox: {…}, confidence: 96 }, … ]
}

Two numbers in there do most of the work later. y1 - y0 is the line height, which is how type size is measured without knowing anything about fonts. x0 is the left edge, which is how indentation and columns are found.

Confidence is used before either. Words scoring under 40 are dropped and counted, and that filtering happens first— a smear of noise along the edge of a scan is often recognised as a tall garbage word, and if it survived into the next step it would drag the page's median line height upward and quietly stop every real heading from being detected. The count of what was thrown away is reported next to the output rather than hidden, because a conversion that dropped two hundred words is telling you to rescan.

Stage 3: geometry becomes Markdown structure

With clean lines in reading order, the reconstruction is a small set of rules, each one deliberately expressed as a ratio rather than a pixel count. Resolution changes everything measured in pixels and nothing measured in ratios, and the same page arrives here as a 900-pixel screenshot and a 5,000-pixel scan.

1. Type size becomes heading level

The median line height across the page is taken as the body text. A line at least 1.18× that is an ###, 1.42× is an ##, and 1.75× is a #. One guard stops the obvious failure: a “heading” longer than 120 characters is a paragraph set in large type, not a title, and is left as body text.

2. Wide gaps become columns

Inside a line, a gap wider than 0.9× the line height splits the words into separate cells. The threshold is deliberately tied to line height rather than to the line's own median gap, and the reason is worth stating because it is the sort of bug that looks like a tuning problem: in a table whose cells each hold one word, every gap is a column gap, so the median gap is the column gap and no multiple of it will ever be exceeded. Line height is independent of the gap distribution — and since a space is roughly a third of the line height, anything approaching a full line height is several spaces wide.

3. Repetition becomes a table

One line splitting into cells means nothing. Three or more consecutive lines splitting into the same number of cells at the same x positions is a table, and is emitted as a GFM pipe table with the first row as the header. Two rows was tried and is not enough evidence: a section heading with a page number beside it satisfies it perfectly.

4. Vertical space becomes paragraphs

A gap between two lines wider than 0.9× the body height ends the block. Otherwise the lines are joined with a space, because a line that ends at the right margin is a wrapped sentence rather than a new one — and a word split by a hyphen at that margin is rejoined rather than left as reconstruc- tion.

"Follow-up actions"  h=38  y=557
"Item" "Owner" "Due"  h=21  y=599
   x0 = 372, 723, 938
"Clear drainage"  …    h=21  y=641
   x0 = 372, 726, 938
"Replace filter"  …    h=21  y=683
   x0 = 371, 723, 940

## Follow-up actions

| Item | Owner | Due |
| --- | --- | --- |
| Clear drainage | Maintenance | 14 days |
| Replace filter | Facilities | 30 days |

Because the reconstruction reads a stored page model rather than the image, the Headings, Lists, Tables, and Join wrapped lines switches do not run OCR again. They re-derive the document from the same coordinates; only a change of language requires reading the picture again.

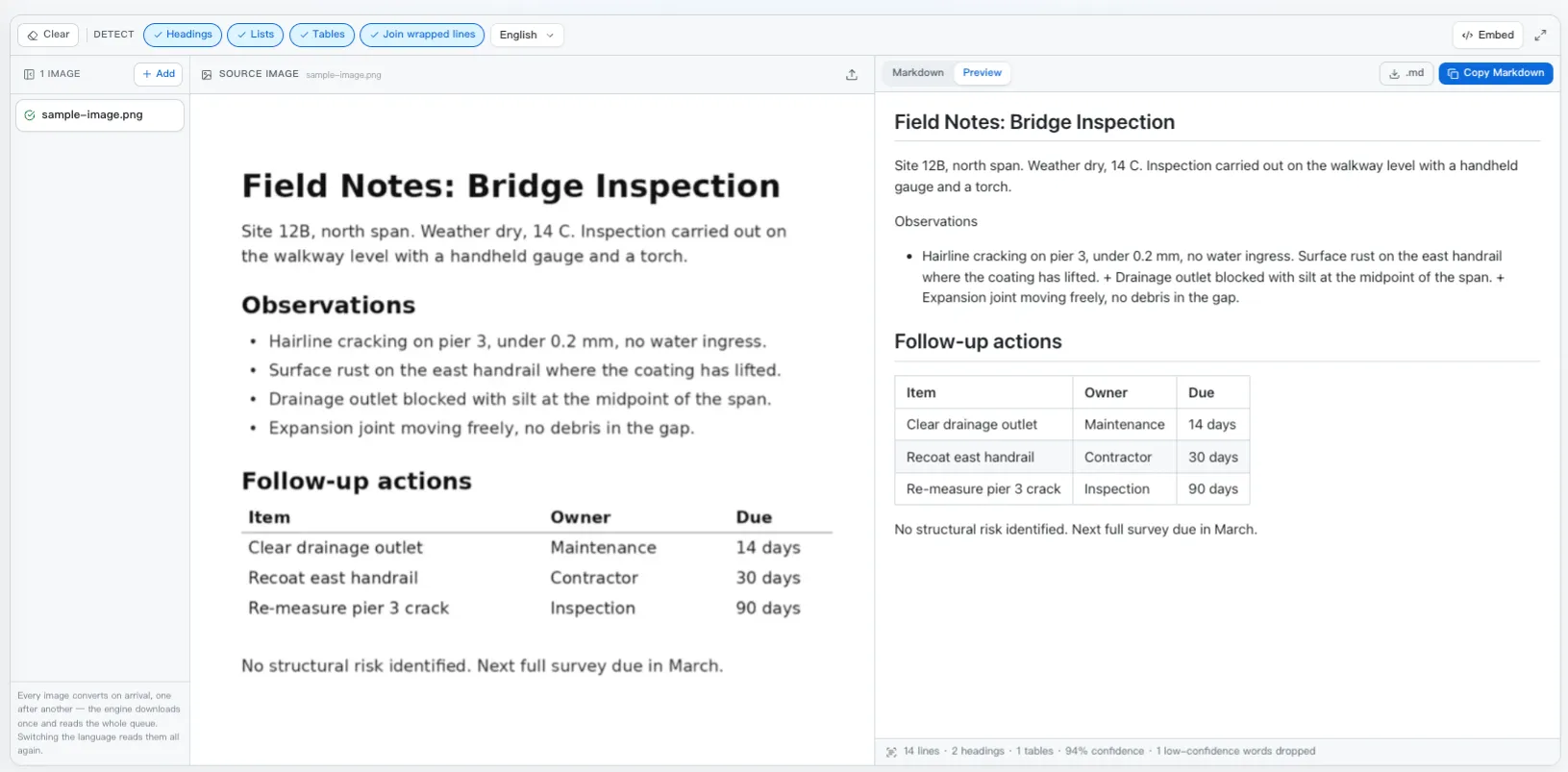

Stage 4: review the result and export Markdown

Each queued image keeps its own source, OCR page model, Markdown, confidence, and status. Selecting a row switches the source and output together, so the preview can be checked against the exact image that produced it while the worker continues through the rest of the queue.

A completed result can be copied or downloaded as .md. When several images finish, the page creates a ZIP entirely in the browser, with one Markdown file named after each source image. No server-side conversion job or document store sits behind those controls.

Where it stops, and why

Every limit below follows from the same fact: this pipeline reads text and positions, and nothing else.

The one setting that is not on the page

Nothing in the interface improves a conversion as much as pixels per character. A character rendered across twenty pixels is read almost perfectly; the same character across eight is a guess, and no amount of toggling headings or lists will recover it.

Where the picture goes

Nowhere. Recognition, the reconstruction, the rendered preview and the ZIP of .md files for a batch are all built in the tab; there is no conversion API behind this page. The precise version is worth stating: the engine and language data are fetched from a public CDN on first use and cached afterwards, and that request contains no part of your image. Once cached, the converter works offline.
